LV Panels & Switchgear – Precision Engineered for Reliability
RA Engineering – Your Trusted LV Panel Manufacturer Since 1990
With over 30 years of expertise and a state-of-the-art CNC factory, RA Engineering designs and manufactures high-quality Low Voltage (LV) panels and switchgear that meet IEC standards. From power factor correction to synchronization-ready ATS/AMF systems, our panels ensure zero downtime, energy efficiency, and seamless integration with ComAp, Siemens, and ABB controllers.
We are Pakistan’s pioneer in auto-synchronizing LV panels, delivering custom, powder-coated, floor/wall-mounted solutions for indoor and outdoor applications.
Introduction
At RA Engineering, we provide advanced Rotating Power Inverter Systems (Motor Generator Sets) designed to deliver clean, stable, and distortion-free electricity. Built on a transformer-less architecture, this system ensures complete isolation from grid fluctuations, making it ideal for industries that demand uninterrupted and high-quality power.
What is a Rotating Power Inverter System?
A Rotating Power Inverter System functions as a synchronous generator operating without a prime mover. It supports network voltage by providing reactive power compensation, short-circuit capacity, and voltage stabilization.
By regulating the excitation current, it ensures both generation and absorption of reactive power, improving network performance and enabling systems to ride through faults and overload conditions without interruption.
This technology enhances system inertia and reliability — ensuring stable voltage even during prolonged voltage sags or grid disturbances.

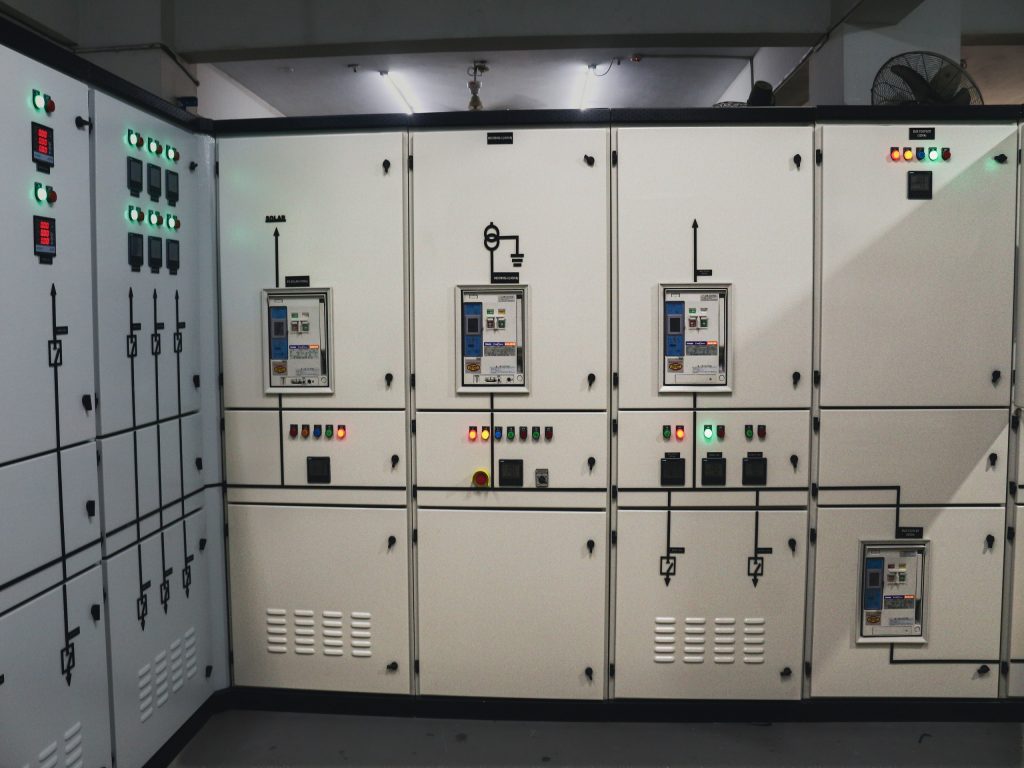

Our LV Panel & Switchgear Solutions
| Panel Type | Key Features |
|---|---|
| Power Factor Correction (PF) Panels | Auto PFC with detuned reactors, harmonic filtering, real-time kVAr control |
| ATS + AMF Panels | Seamless auto transfer, genset start/stop, ComAp/Siemens logic, surge protection |
| MCC (Motor Control Center) Panels | DOL/SD/VFD starters, PLC integration, remote I/O, thermal overload protection |
| Distribution Panels | 4-pole copper busbar, MCCB/ACB, modular design, IP55 protection |
| Imported BTS Panels | ABB/Siemens original, pre-wired, tested for telecom & data centers |
| Local BTS Panels by Siemens | Siemens-certified assembly, cost-effective, 100% compatible with imported systems |
| Solid State Switchgear | SSR-based fast switching, zero mechanical wear, high-frequency applications |
All panels include:
- Electro-tinned copper busbars (3-phase, 4-wire, 50Hz)
- Fine powder coating (RAL 7035)
- Front-access lockable doors
- CNC precision cutting, bending, nibbling
- Full FAT (Factory Acceptance Testing) reports
LV Panels for Mission-Critical Applications – Powering Pakistan’s Industrial Backbone
Trusted by Pakistan’s Leading Industries
Our LV panels and switchgear power mission-critical operations across diverse sectors:
- Ismail Group of Industries – 5 MW synchronized PF + ATS panels
- Gatron Industries – MCC panels with VFD integration
- Soorty Textile – Distribution + AMF panels for 24/7 spinning
- Artistic Milliners – Solid-state switchgear for high-speed automation
- Artistic Denim – BTS panels for energy-efficient dyeing plants
- Indus Motor Company (Toyota) – MCC + PFC panels for assembly lines
- Pak Suzuki Motor Co. – ATS/AMF panels for paint shop backup
- American Consulate, Karachi – Redundant UPS + distribution panels
- British Consulate, Karachi – Secure BTS + MCC systems
- Karachi Shipyard & Engineering Works – Marine-grade ATS panels
- Getz Pharma – Cleanroom-compliant MCC + PFC panels
Why Choose RA Engineering
RA Engineering delivers unmatched precision through CNC manufacturing with zero tolerance errors, ensuring every panel meets the highest standards. Our solutions are fully IEC 61439 compliant with type-tested assemblies, seamlessly integrating ComAp and Siemens technologies for synchronization, SCADA, and cloud monitoring. We provide comprehensive custom design support including SLDs, GA drawings, and 3D modeling, backed by on-site commissioning from certified engineers. Every panel comes with a 5-year warranty and optional annual maintenance contracts for long-term reliability and peace of mind.
